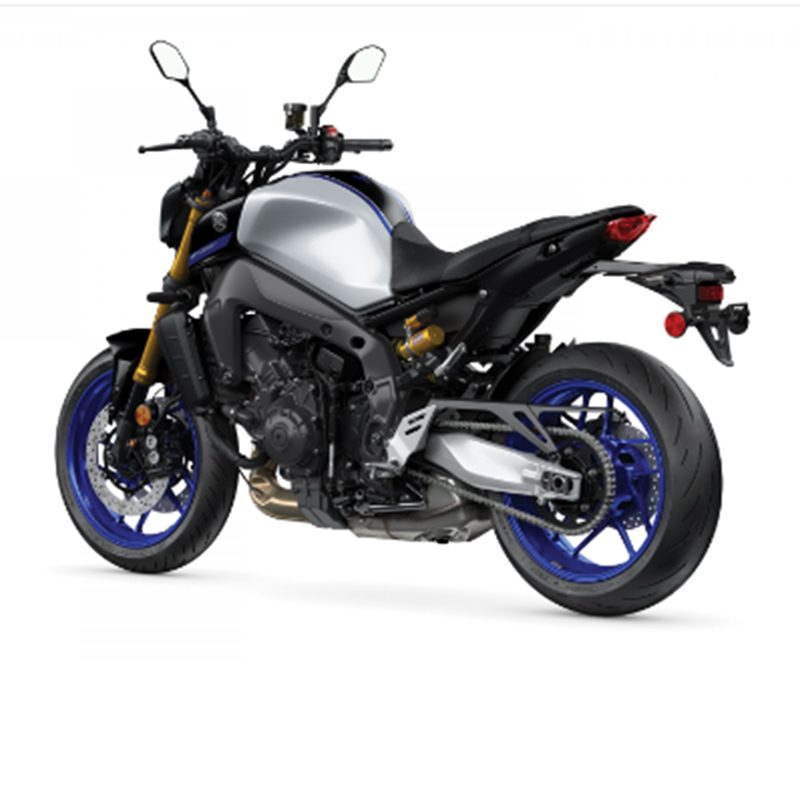

دباب MT09SP-2023

ENGINE

Engine Type       890cc liquid-cooled, DOHC, inline 3-cylinder; 4 valves per cylinder

Bore x Stroke     78.0mm x 62.1mm

Compression Ratio         11.5:1

Fuel Delivery     Fuel injection with YCC-T

Ignition TCI: Transistor Controlled Ignition

Transmission     6-speed; multiplate assist and slipper clutch

Final Drive: Chain

CHASSIS

Suspension/Front:  41mm KYB® inverted fork, adjustable preload, high/low speed compression and rebound; 5.1-in travel

Suspension/Rear: Ohlins® single shock, adjustable preload, compression and rebound damping; 4.8-in travel

Brakes/Front     Dual 298mm hydraulic disc; ABS

Brakes/Rear      245mm hydraulic disc; ABS

Tires/Front        120/70ZR17M/C

Tires/Rear          180/55ZR17M/C

DIMENSIONS

LxWxH  82.3 in x 31.3 in x 46.9 in

Seat Height        32.5 in

Wheelbase        56.3 in

Rake (Caster Angle): 25.0°

Trail: 4.3 in

Max. Ground Clearance 5.5 in

Fuel Capacity: 3.7 gal

Fuel Economy**: 49 MPG

Wet Weight*** 419 lb

OTHER

Warranty:1 Year (Limited Factory Warranty)
